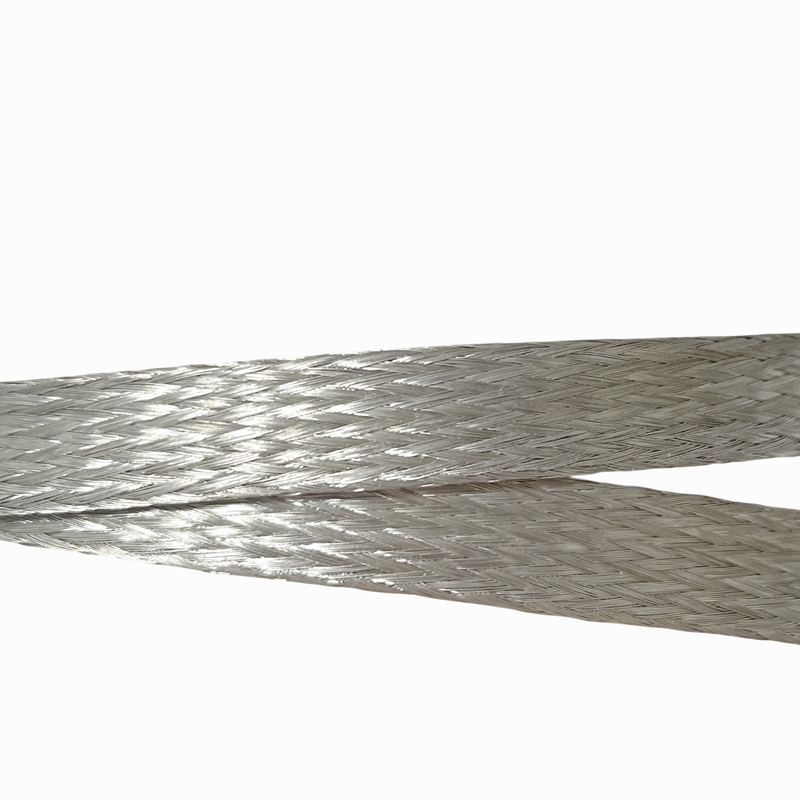

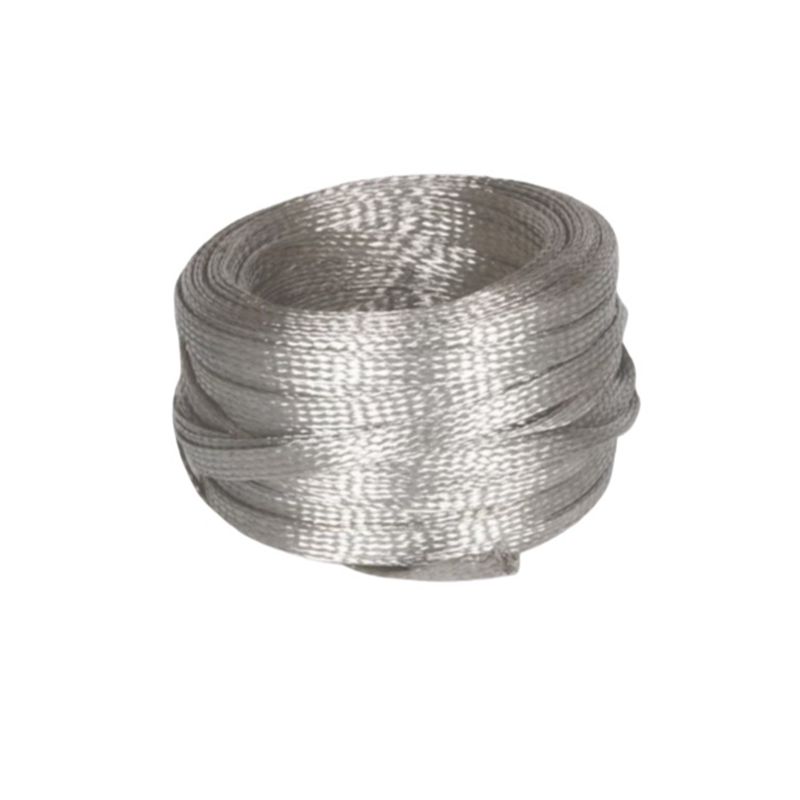

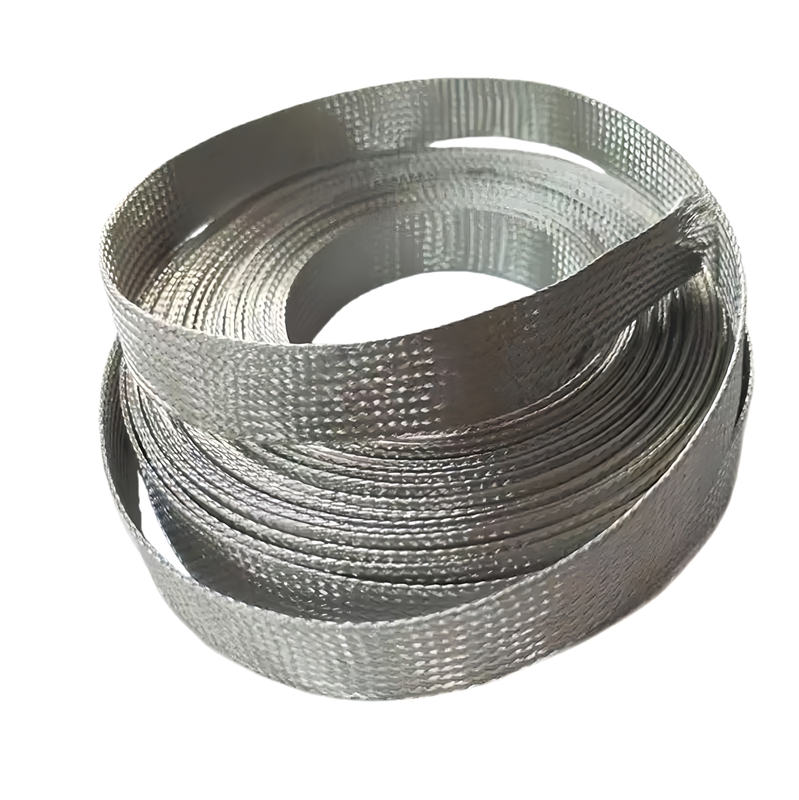

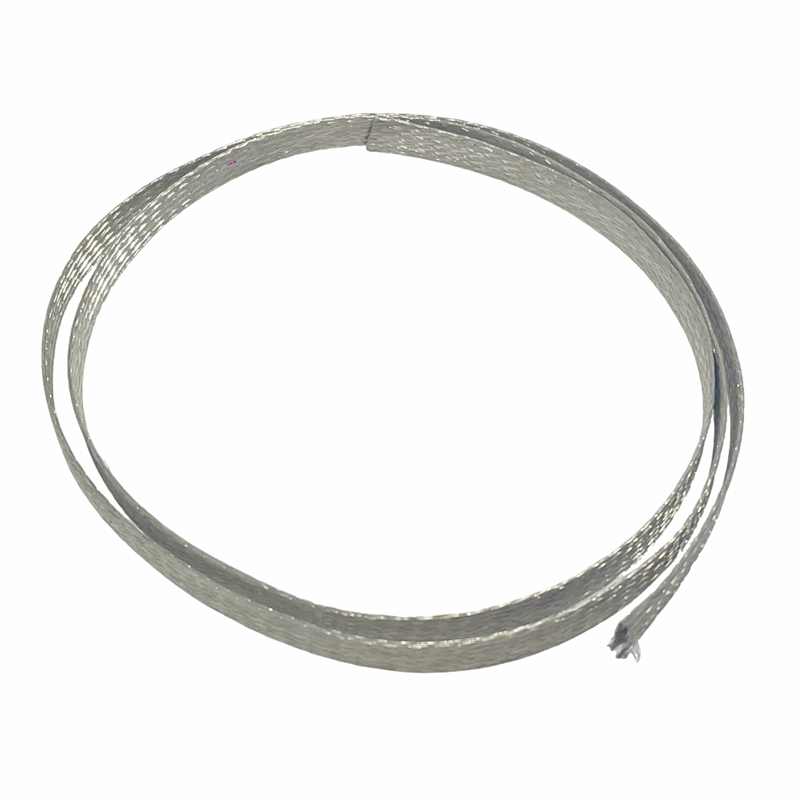

Braided Shield Grounding Cable for EMI Shielding

Our Braided Shield Grounding Cable is a high-performance EMI shielding and grounding solution, specially designed for aerospace system integrators, electronic equipment manufacturers and industrial automation solution providers. This cable is engineered for electrical device connection, electronic component wiring, and wire harness protective sheathing, providing reliable electromagnetic interference suppression and stable low-resistance grounding performance in complex industrial and aerospace environments.

Core Advantages of EMI Shielding Braided Grounding Cable

Superior Shielding & Grounding Performance

This high density braided grounding cable for electronics adopts a precision woven structure, with a minimum braiding density of 75% and up to 85% for customized models, delivering exceptional EMI shielding effect. It can effectively suppress electromagnetic interference in high-frequency environments, protect sensitive electronic circuits from signal noise, maintain complete signal integrity, and provide low-resistance, long-term stable grounding performance.

Flexible & Lightweight Compact Design

The cable features outstanding flexibility, ultra-thin wall thickness, light weight and compact structure, perfectly adapting to narrow wiring spaces and complex bending scenarios in aircraft and precision electronic equipment. It can be used as a standalone grounding conductor or a protective sheath for wire harnesses, with versatile installation methods to meet diverse on-site wiring needs.

Multiple Material Options & Long-Term Durability

The tinned copper braided shield grounding cable offers multiple conductor material options, including tinned copper wire, silver-plated copper wire, nickel-plated copper wire and nickel-tinned copper wire, each with excellent oxidation resistance, corrosion resistance and wear resistance, ensuring long-term stable performance in harsh industrial and aerospace environments.

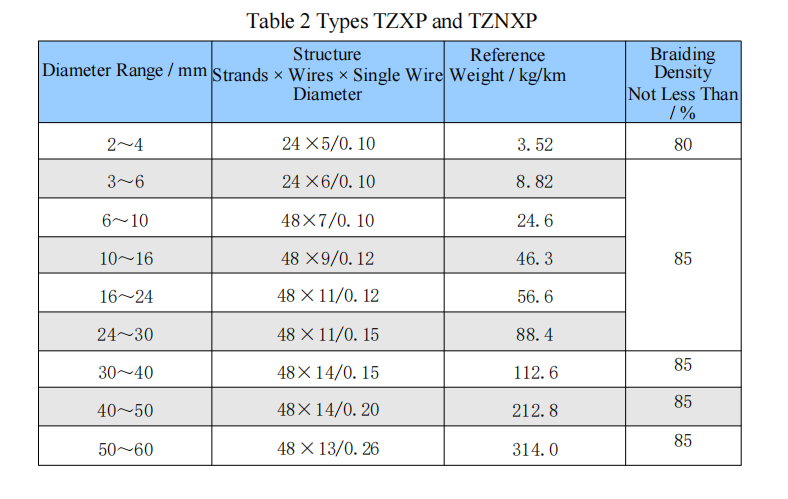

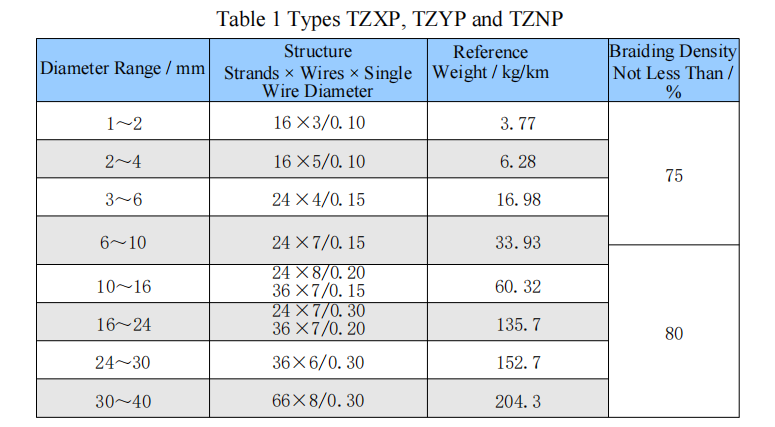

Technical Specifications of High Density Braided Shield Grounding Cable

Industrial Applications of Aerospace Grade Braided Grounding Cable

This aerospace EMI shielding braided cable is widely used in aircraft systems for reliable grounding and shielding of cable bundles, protecting airborne sensitive avionic equipment from EMI interference and fully meeting the strict safety and reliability standards of the global aerospace industry. It is also the ideal solution for electronic equipment, industrial automation control systems, rail transit equipment, medical precision instruments, and other scenarios that require high-performance EMI shielding and stable grounding, serving professional business clients in various industrial fields.

Customized Solutions for Industrial Requirements

We provide fully customized solutions for industrial business clients. The custom braided shield grounding cable can be adjusted in conductor material, diameter, braiding density, structure (with or without inner core), and total length, to meet the specific needs of different aerospace, electronic and industrial applications. We can also customize products according to your specific industry standards, environmental requirements and installation parameters.

Manufacturing & Quality Assurance

Manufactured by Nanjing Rays Optoelectronic Technology Co., LTD, a professional special cable manufacturer, our Braided Shield Grounding Cable is produced with advanced high-speed braiding technology and a strict full-process quality control system. Each batch of products is subjected to conductivity test, shielding efficiency test, flexibility test and corrosion resistance test to ensure stable performance and compliance with international industry standards. For mature standard products, we deliver within 1 month, while customized products have a flexible delivery cycle based on your specific requirements.

FAQ

What conductor materials are available for the Braided Shield Grounding Cable?

We offer four main conductor material options: tinned copper wire, silver-plated copper wire, nickel-plated copper wire, and nickel-tinned copper wire, to adapt to different application environments and performance requirements.

Can this cable be used as both a grounding conductor and an EMI shielding sheath?

Yes, this cable has a versatile dual-function design, which can be used as a standalone grounding conductor, or as a protective EMI shielding sheath for wire harnesses, meeting both functional requirements in one product.

Can you customize the braiding density and structure of the cable?

Yes, we support full customization of braiding density, diameter, conductor material, structure (with or without inner core) and other parameters to meet your specific industrial requirements.

What is the delivery lead time for the cable?

For mature standard products, the delivery cycle is within 1 month. For customized special products, the delivery time is adjusted according to the specific customization details.
