Aerospace Cat5e Data Cable | LVDS Signal Transmission Cable

Aerospace Cat5e Data Cable is a high-performance special data cable designed for aerospace electronic equipment and avionics communication systems.

Unlike standard industrial Cat5e cables, aerospace-grade Cat5e cables require enhanced thermal stability, reduced weight, smaller cable diameter, superior mechanical toughness, and high reliability under extreme operating conditions.

Using fluoropolymer-based insulation and jacket materials, this cable provides excellent performance under severe temperature fluctuations, vibration, chemical exposure, and demanding aerospace environments.

It is especially suitable for LVDS signal transmission in aerospace electronics and mission-critical data systems.

Technical Specifications of High Temperature Resistant Cat5e Aviation Cable

Key Features

Wide Temperature Range

Designed for extreme aerospace environments.

Operating temperature range:

-60°C to +180°C

Suitable for:

• High-altitude systems

• Low-temperature environments

• High-temperature equipment zones

Stable LVDS Signal Transmission

Optimized for high-speed differential signal transmission.

Ensures stable data integrity for aerospace electronic systems.

Controlled Impedance Options

Available impedance:

100Ω

120Ω

Supports different aerospace communication system requirements.

Fluoropolymer Insulation & Jacket

Provides:

• High temperature resistance

• Low temperature resistance

• Chemical resistance

• Aging resistance

• Flame retardancy

Lightweight & Compact Structure

Designed for aerospace applications where weight and space are critical.

Features:

• Reduced cable weight

• Smaller outer diameter

• Easy installation

Excellent Mechanical Toughness

Strong resistance to:

• Vibration

• Bending

• Mechanical stress

Suitable for harsh aerospace environments.

Typical Applications

• Aerospace Avionics Systems

• Aircraft Data Networks

• LVDS Signal Transmission Systems

• Flight Control Systems

• Aerospace Sensor Systems

• Navigation Systems

• Communication Systems

• Aircraft Monitoring Systems

• Aerospace Testing Systems

• Defense Electronic Systems

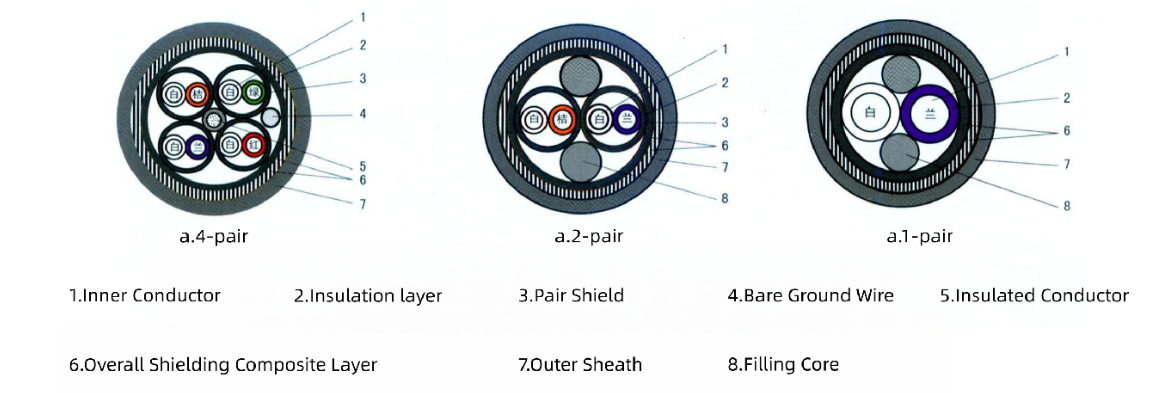

Cable Structure

Conductor

Available conductor options:

• Tinned Copper

• Silver-Plated Copper

Benefits:

• Stable conductivity

• Corrosion resistance

• High reliability

Insulation

Fluoropolymer Insulation

Available materials:

• FEP

• PTFE

• PFA

Features:

• High dielectric stability

• Wide temperature resistance

• Chemical resistance

Shielding

Optional shielding structures:

• Aluminum Foil Shield

• Braided Shield

• Double Shielding

Provides excellent EMI protection for aerospace signal systems.

Outer Jacket

Fluoropolymer Outer Jacket

Features:

• High and low temperature resistance

• Flame retardant

• Lightweight

• Corrosion resistant

• Aging resistant

Performance Advantages

Aerospace Reliability

Designed for harsh aerospace operating environments.

High-Speed Signal Integrity

Optimized for LVDS data transmission.

Environmental Resistance

Suitable for extreme temperature and chemical exposure.

Lightweight Design

Supports aerospace weight reduction requirements.

Custom Manufacturing Capabilities

We support customized aerospace Cat5e cable manufacturing based on:

• Impedance requirements

• Shielding structure

• Conductor material

• Outer diameter requirements

• Weight requirements

• Connector assembly

• LVDS transmission requirements

• Installation environment

Why Choose Us

Aerospace Cable Manufacturing Expertise

Extensive experience in aerospace special cable engineering.

OEM & ODM Support

Customized manufacturing according to technical drawings.

High-Reliability Material Systems

Professional fluoropolymer cable production capability.

Strict Quality Control

Every cable is tested before shipment.

Fast Sample Development

Quick prototype support for aerospace system integration.

FAQ

What is this cable mainly used for?

It is mainly used for LVDS signal transmission in aerospace electronic systems.

What impedance options are available?

100Ω and 120Ω are available.

Is it suitable for extreme temperatures?

Yes, it operates from -60°C to +180°C.

Can shielding be customized?

Yes, shielding structure can be customized.

Can you manufacture according to drawings?

Yes, full OEM and ODM manufacturing is supported.
