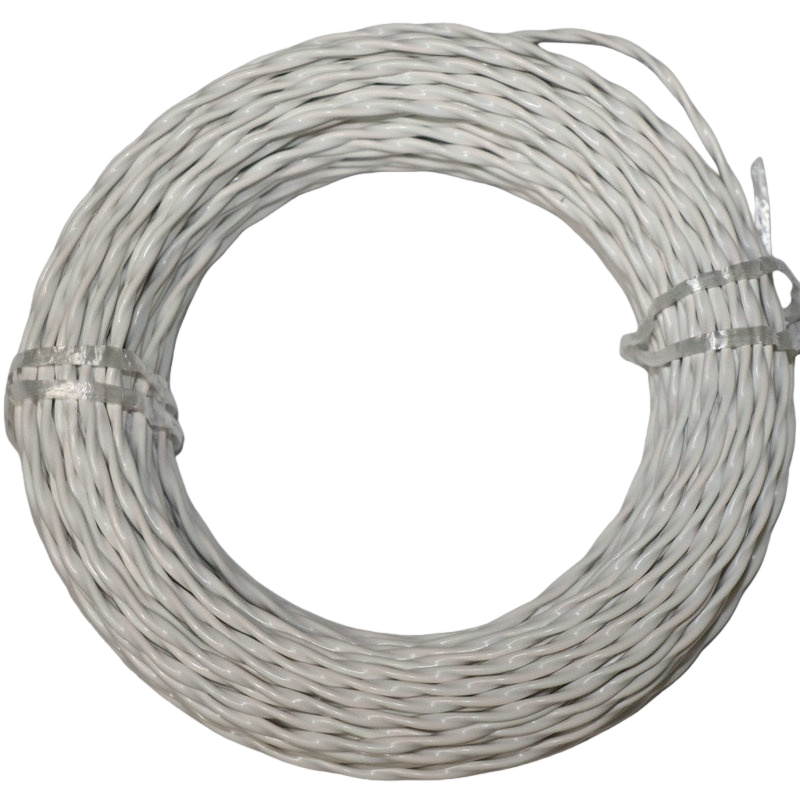

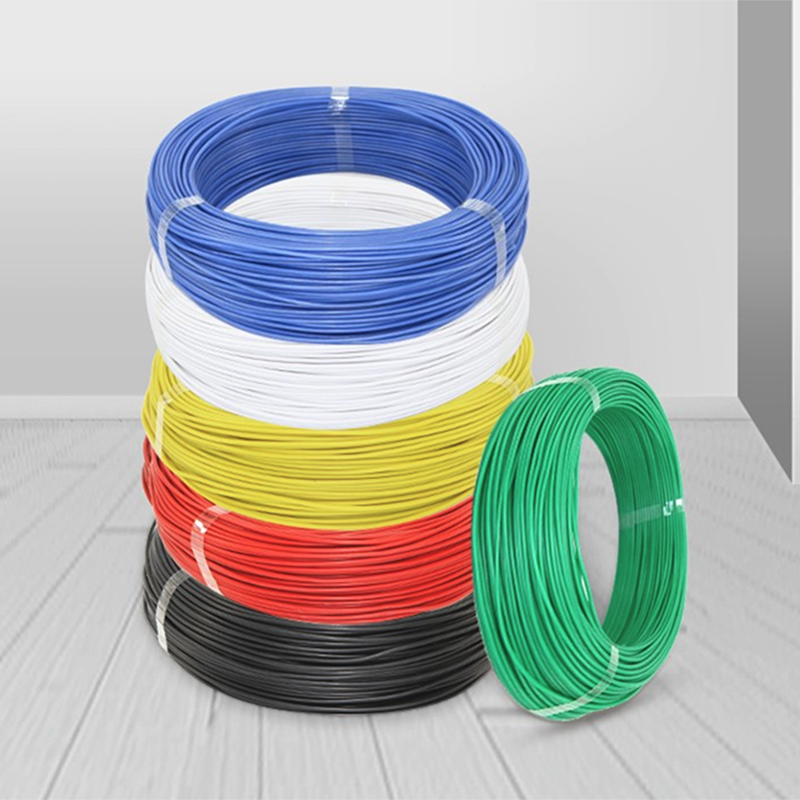

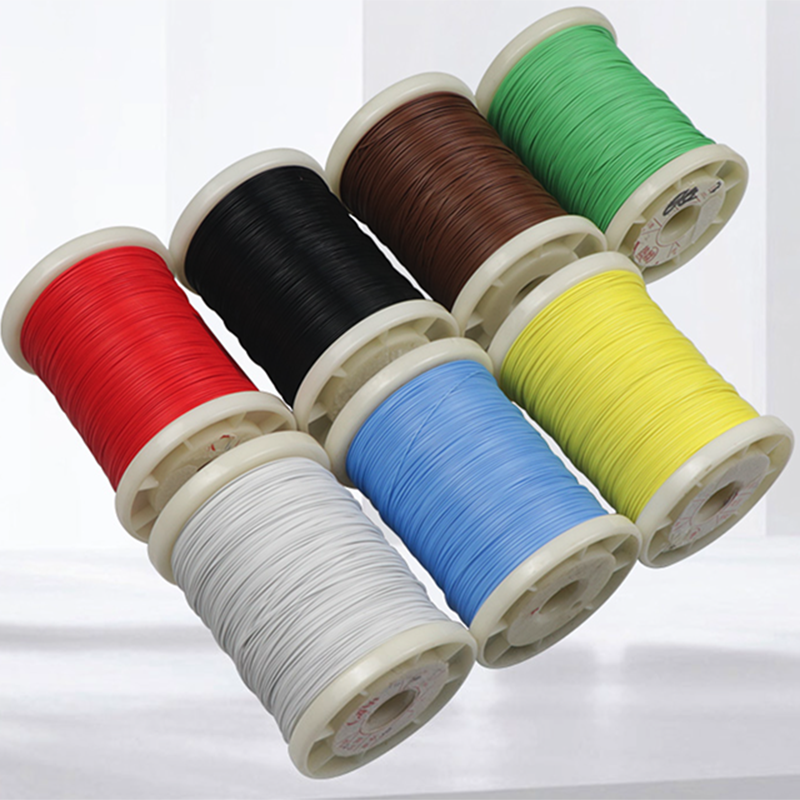

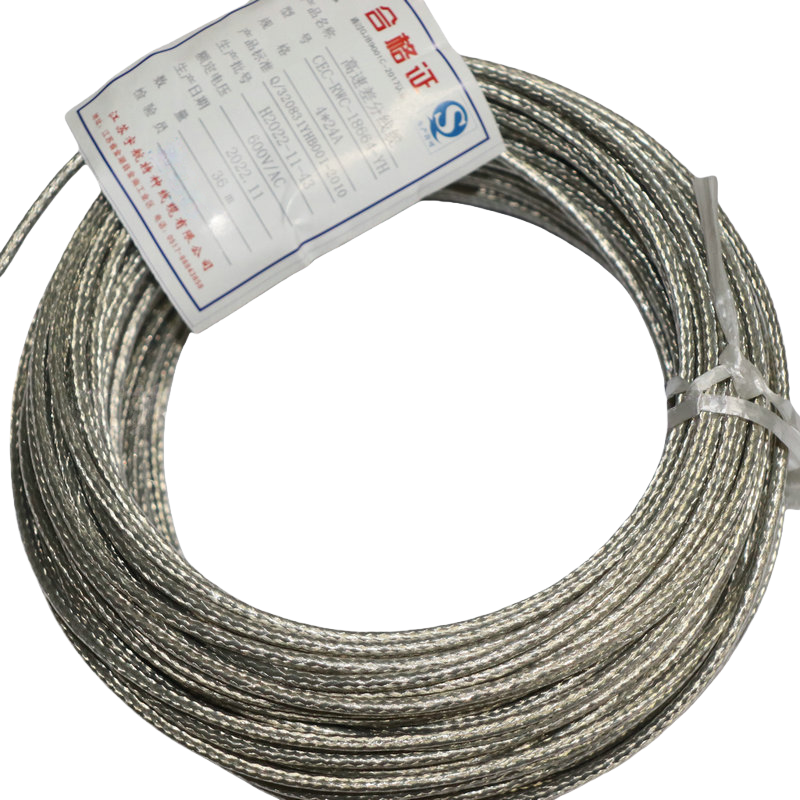

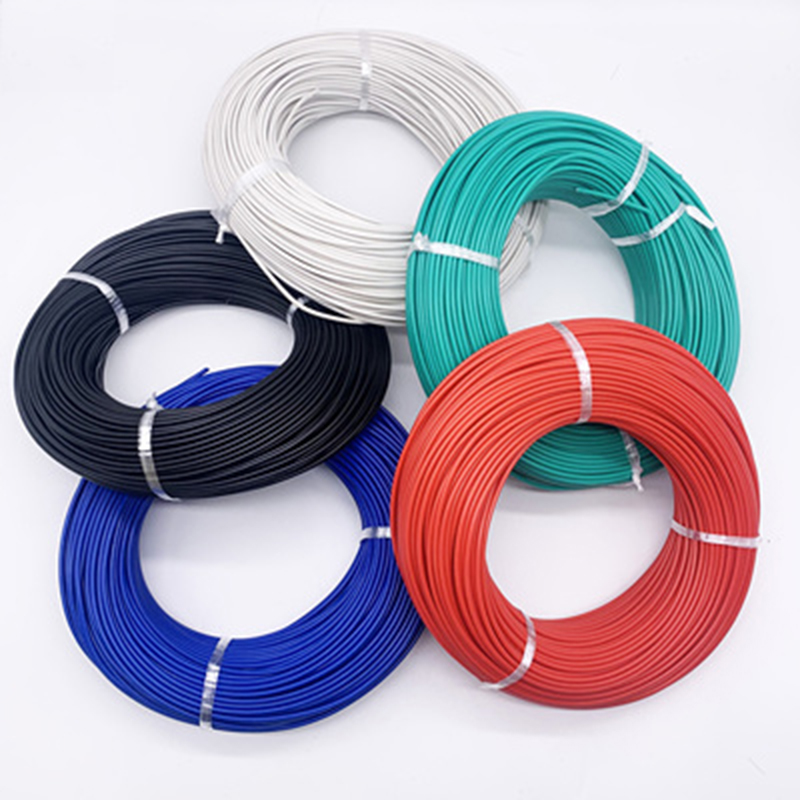

Our QLA series High-performance Transmission Wire for Aerospace And Aviation is an independently developed premium transmission solution, engineered in strict reference to US military standards MIL-W-22759/32～35 and MIL-W-22759/41～46. Designed for extreme working conditions, this wire features an optimized conductor structure with optional single/double-layer insulation made of specially modified fluoropolymer. With a wide operating temperature range of -65℃ to +200℃, lightweight design, and superior corrosion resistance, it delivers reliable energy and signal transmission for electrical equipment in harsh environments, serving as the preferred choice for aerospace, marine, and industrial electronic business clients.
This MIL-W-22759 compliant aerospace wire adopts a scientific stranded structure of 99.99% high-purity oxygen-free copper, with uniform stranding pitch (12mm to 25mm) and actual cross-sectional area deviation controlled within ±1%, far below the industry standard of ±2.5%. It ensures low DC resistance (≤0.017241Ω/mm² at 20℃), stable current-carrying capacity, and minimal energy loss during long-distance transmission.

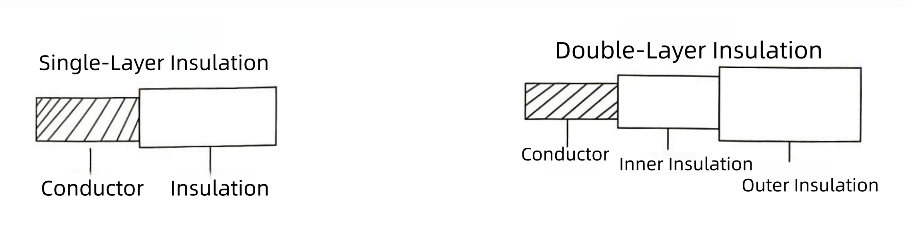

Available in single or double-layer insulation options, both made of cross-linked ethylene-tetrafluoroethylene copolymer (ETFE), this ETFE insulated high temperature wire has an insulation thickness of 0.2mm-0.8mm and a breakdown voltage of ≥25kV/mm, 30% higher than standard insulation materials. The double-layer design enhances safety against insulation damage, with excellent wear resistance and electrical insulation for complex industrial environments.
It maintains stable performance in the wide temperature range of -65℃ to +200℃, with insulation resistance remaining above 100MΩ after 1000 hours of 200℃ high-temperature aging, and withstands 5000 times of repeated bending at -65℃ without cracking. This corrosion resistant aviation cable also has exceptional resistance to acids, alkalis, oils, and salt spray, with no corrosion or peeling after 1000 hours of salt spray testing, delivering a service life of over 18 years under normal working conditions.
With a minimum bending radius of only 6× the outer diameter and a density of ≤1.5g/cm³, this lightweight aerospace transmission cable is more flexible than standard industrial wires, easy to install in mobile and narrow-space scenarios, perfectly meeting the stringent layout requirements of aerospace and precision equipment.
AWG | Nominal Cross - Sectional Area (mm2) | Conductor Structure (n/AWG) | Actual Cross - Sectional Area of Conductor (mm2) |
30 | 0.06 | 7/38 | 0.0550 |
28 | 0.08 | 7/36 | 0.0791 |
26 | 0.15 | 19/38 | 0.1492 |
24 | 0.20 | 19/36 | 0.2148 |
22 | 0.35 | 19/34 | 0.3820 |
20 | 0.50 | 19/32 | 0.5966 |
19 | 0.75 | 19/31 | 0.7890 |
18 | 1.0 | 19/30 | 1.008 |
16 | 1.2 | 19/29 | 1.169 |
15 | 1.5 | 19/28 | 1.527 |
14 | 2.0 | 19/27 | 2.042 |
13 | 2.5 | 37/29 | 2.614 |
12 | 3.0 | 37/28 | 2.974 |
11 | 4.0 | 37/27 | 3.976 |
10 | 5.0 | 37/26 | 4.882 |
9 | 6.0 | 37/25 | 5.882 |
This wire serves industrial business clients across multiple sectors with harsh environment requirements:
Aerospace & Aviation: Aircraft engines, avionics systems, and airborne equipment, adapting to high-altitude large temperature difference environments.
Marine & Offshore: Marine ships, offshore platforms, and shipboard power and control systems, withstanding seawater and marine atmospheric erosion.
Industrial Automation: Automated production lines, sensor and controller connections, suitable for narrow-space fixed installation.
High-Temperature Equipment: Industrial furnaces, smelting equipment, and high-temperature pipeline systems, maintaining stable performance under long-term high-temperature operation.
Precision Electronics: Medical instruments, communication devices, and other precision electronic equipment, ensuring accurate and stable signal transmission.
We provide fully customized solutions for industrial business clients to meet specific project needs: customizable insulation structure (single/double-layer), cross-sectional area, cable length, and special performance modifications for extreme environments. We also offer sample support for pre-purchase evaluation, with free samples for low-value standard products and cost-based samples for high-value custom items.
As a professional special cable manufacturer with production facilities in Huai'an and marketing center in Nanjing, we strictly follow US military standards and national regulations in the full production process. Every batch of our High-performance Transmission Wire for Aerospace And Aviation undergoes strict testing, including high-temperature aging, salt spray, bending, and breakdown voltage tests, with 100% qualification inspection before delivery to ensure long-term stable and reliable performance.
Our QLA series wire is engineered in reference to US military standards MIL-W-22759/32～35 and MIL-W-22759/41～46, and fully meets relevant national industrial standards.
Yes, we support full customization of insulation structure, cross-sectional area, cable length, and other parameters to meet your specific project and equipment requirements.
For mature standard products, we arrange shipment within 1 month. For custom special products, the delivery cycle is subject to specific customization requirements.
We provide sample support for business clients. Low-value standard samples are free of charge, while high-value custom samples require cost payment. Specific details can be discussed with our customer service team.
