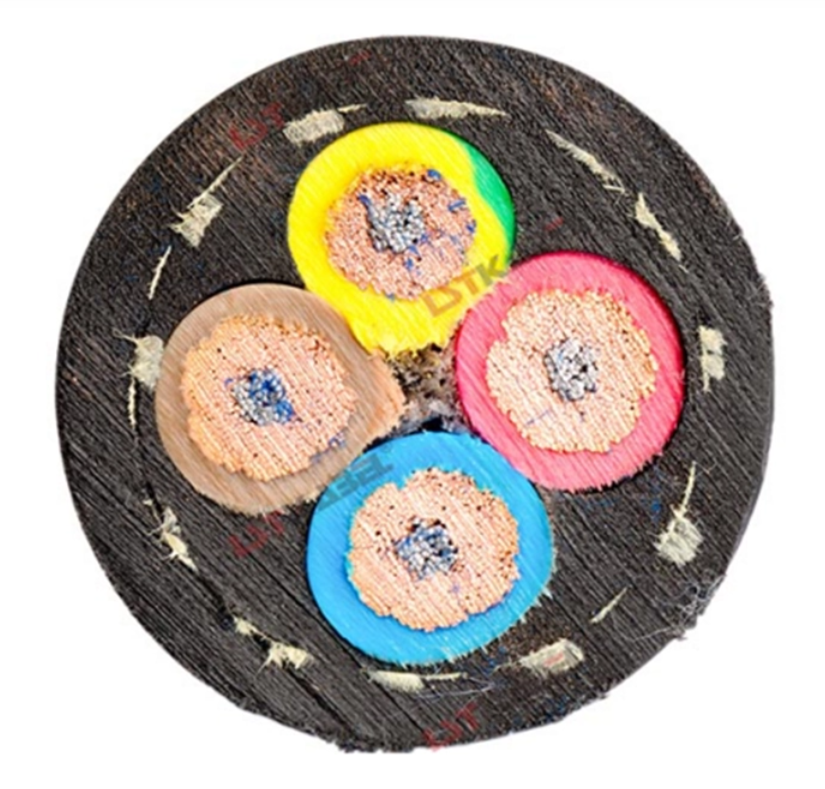

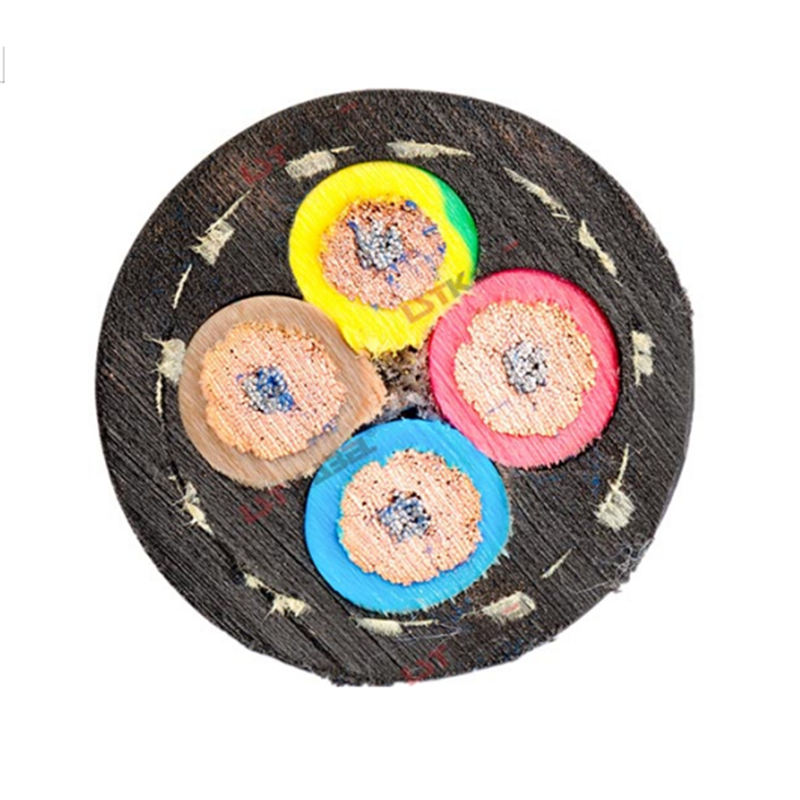

Our Towing Cable (also known as Drag Cable) is a purpose-built heavy-duty transmission cable engineered for industrial scenarios requiring frequent winding, unwinding, and dragging operations. Designed with imported high-performance materials and industry-leading manufacturing processes, this cable delivers exceptional durability and reliability in harsh physical environments. It is the preferred power and signal transmission solution for industrial enterprises, mining operators, port management entities, and large-scale logistics facility managers, with a service life 3-5× that of standard rubber-sheathed cables.
Reinforced with special Kevlar braiding and galvanized flexible steel wire, our Drag Cable offers outstanding tensile and anti-torsion performance. It effectively resists cable damage from reel winding tension and internal structural fracture caused by torsional spiral deformation, eliminating core breakage risks during long-term cyclic operation.
With optimized cable structure and imported raw materials, we greatly enhance the wear resistance and service life of our Industrial Towing Cable. We adopt a 3+1 large-scale untwisting stress stranding machine, the industry-leading equipment for winding cable production, to ensure precise stranding process and stable overall performance in continuous operation.
This Mining Towing Cable withstands scratching, dragging, and winding movements in pits, mines, tunnels, and open-air industrial sites. It features excellent insulation voltage resistance, winding voltage resistance, UV resistance (no cable cracking), oil resistance, weather resistance (-40℃ to 105℃), and resistance to complex chemical corrosion.
With a service life 3-5× that of ordinary rubber-sheathed cables, our Reel System Towing Cable adapts to diverse complex industrial scenarios, reducing maintenance and replacement costs for industrial operators in long-term operation.
Parameter | Details |
Conductor | 99.9999% annealed oxygen-free flexible copper wire, special tensile reinforced conductor optional |
Insulation | Special weather-resistant, extrusion-resistant high-strength polymer composite material |
Core Identification | Color/digital coding + green-yellow earth wire, compliant with DIN47100 standard |
Filling Reinforcement | High-grade polyester-cotton thread, special aramid fiber, tensile-specific galvanized flexible steel cable |
Inner Sheath | Special weather-resistant high-strength polymer composite material |
Reinforced Layer | Optional aramid braided anti-torsion layer for long-stroke winding |
Outer Sheath | US-imported polyurethane; available in yellow, black, grey |
Operating Temperature | -40℃ to 105℃ |
Our Heavy Duty Towing Cable is widely used across industrial sectors with frequent cable movement requirements. Core applications include tunnel excavation projects, underground and open-pit mining operations, ore transport vehicle systems in mining sites, hoisting and lifting facilities, large-scale logistics yards, port and wharf handling equipment, and other reel systems that require continuous winding and unwinding. It is tailored to meet the strict demands of industrial operators working in harsh physical and chemical environments.
We understand that industrial projects have unique transmission needs, so we offer fully customized solutions for our Towing Cable to match your specific operating conditions. Customization options include conductor reinforcement design for ultra-high tensile scenarios, custom sheath colors for on-site identification, optional aramid anti-torsion braided layers for long-stroke winding systems, and custom core counts and cross-sections for specific power and signal transmission needs. Our engineering team works closely with industrial contractors and facility managers to deliver tailored cable solutions that align with your project specifications.
As a professional special cable manufacturer, we maintain strict control over every production link of our Drag Cable. All products are manufactured with industry-leading equipment and imported high-quality raw materials, with each batch undergoing rigorous performance testing before delivery. Our production process ensures stable product quality, with a service life 3-5× that of standard rubber-sheathed cables, delivering long-term reliable performance for industrial users.
We can provide cable samples for your testing. For low-value standard products, samples are available free of charge; for high-value custom products, sample fees will apply, with specific terms negotiable with our sales team.
For standard mature products, delivery is completed within 1 month. For custom-engineered special cables, the delivery cycle will be confirmed based on your specific customization requirements.
Yes, we offer optional tensile-reinforced conductors and galvanized steel cable reinforcement to meet the ultra-high tensile demands of extreme industrial scenarios.
We produce a full range of special cables, including high-temperature cables, flame-retardant cables, shielded cables, waterproof cables, explosion-proof cables, drag chain cables, and low smoke zero halogen cables.
