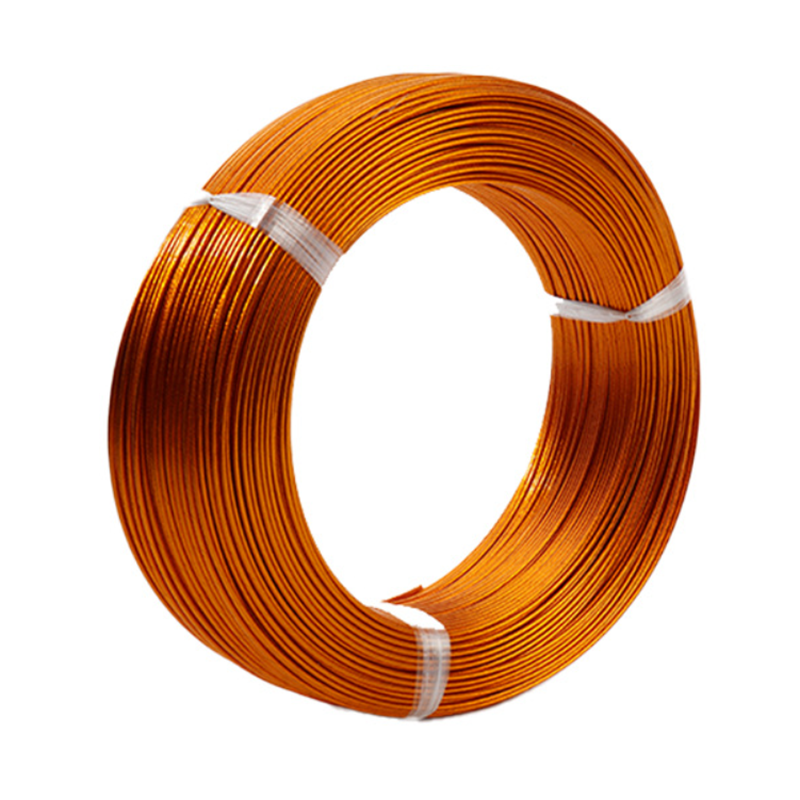

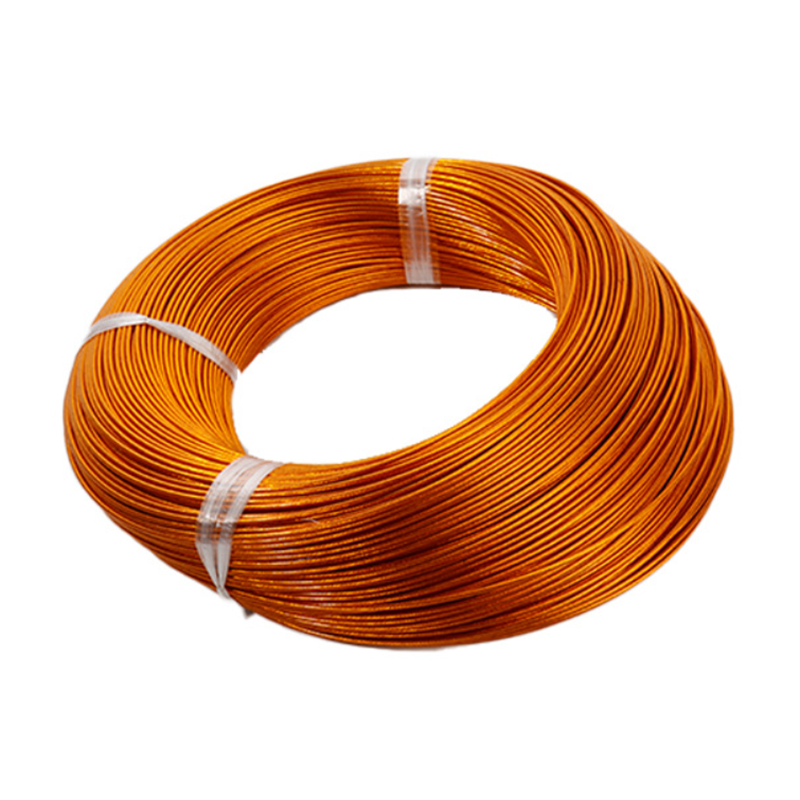

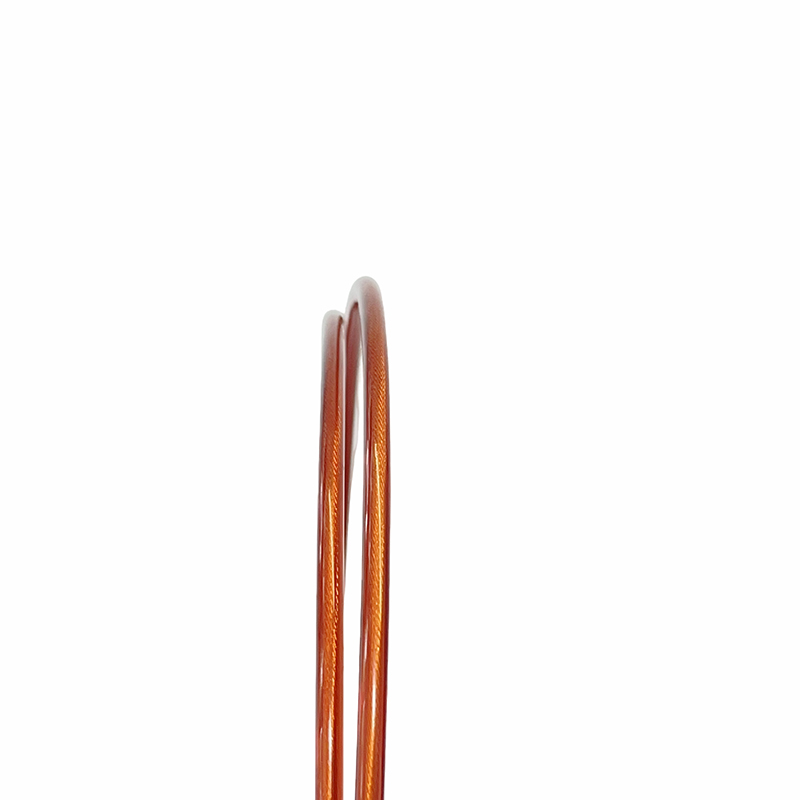

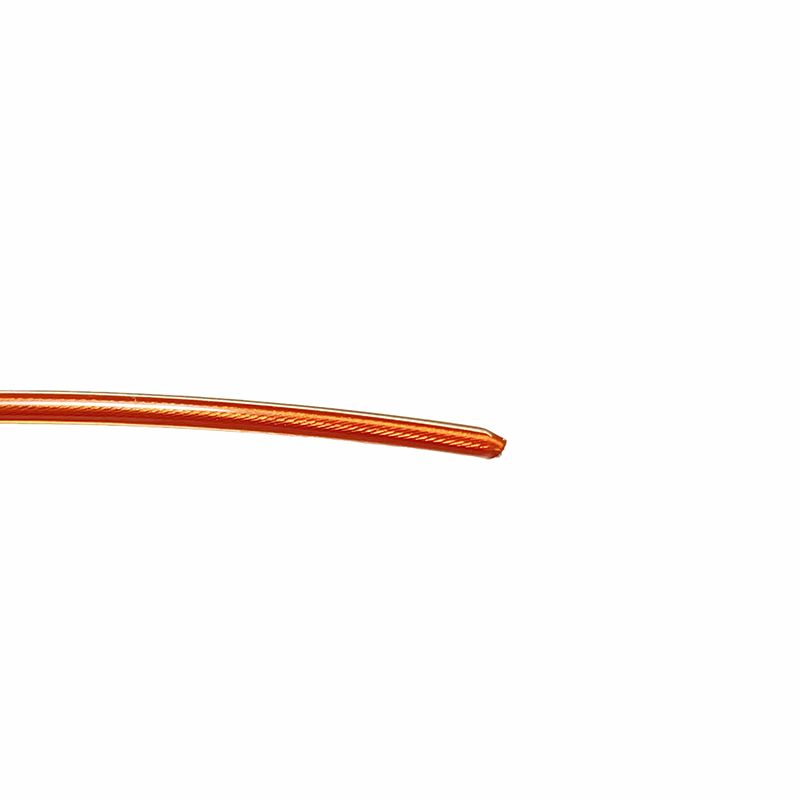

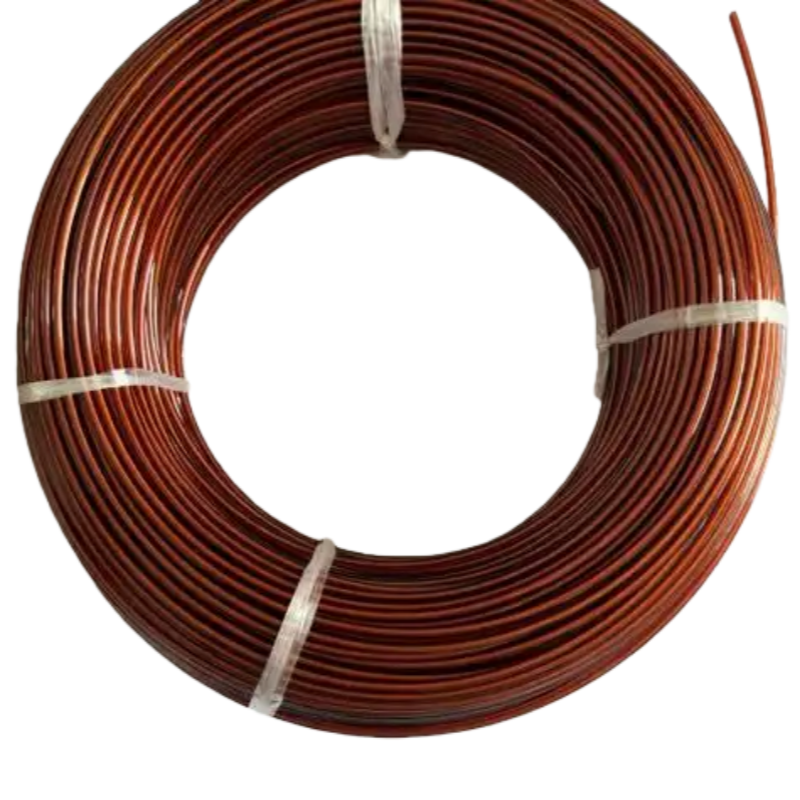

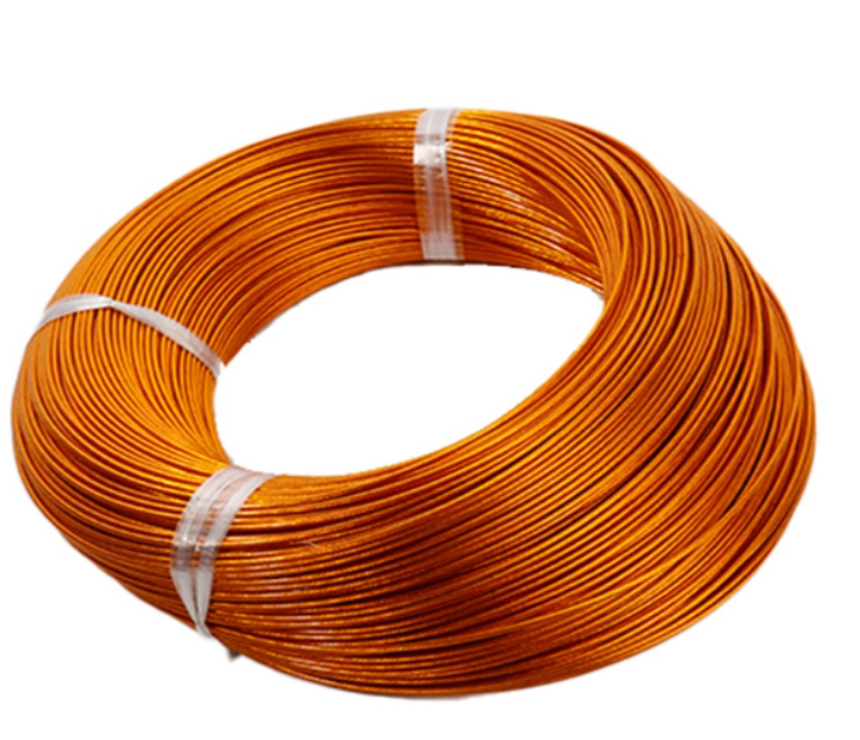

Our Ultra-Thin Polyimide (PI) Insulated Cables is a premium specialized cable engineered exclusively for the extreme operating conditions of nuclear fusion devices, primarily tokamak systems. As the critical "lifeline" of fusion magnet systems, it delivers stable power transmission, precision control signal delivery, and compatibility with cooling media circuits, built with advanced superconducting materials and proprietary insulation & shielding structures. This tokamak cable withstands intense ionizing radiation, ultra-wide temperature swings, and extreme magnetic fields, fully aligned with ITER project standards. It is the ideal solution for nuclear research institutions, commercial fusion power plant developers, and fusion project engineering teams.
Our radiation-resistant fusion cable delivers industry-leading ionizing radiation tolerance up to 10⁹ rad. After 3000 hours of radiation testing, it maintains insulation resistance ≥80MΩ, signal attenuation ≤3%, and mechanical strength loss below 8%, far exceeding nuclear industry benchmarks to eliminate unplanned downtime.
This high-temperature nuclear fusion cable supports a long-term working range of -196℃ to +350℃, with short-term resistance up to 400℃ (≤20 minutes of continuous operation). Even under alternating ultra-low temperature cooling and ultra-high temperature reaction cycles, performance fluctuation is ≤4%, fully meeting fusion operation thermal demands.
Fabricated with 99.999% high-purity oxygen-free copper and low-loss insulation, the cable has a DC resistance ≤0.011Ω/mm² at 20℃. For high-frequency control signals, transmission loss is ≤0.015dB/m, minimizing distortion to ensure accurate, real-time power and signal delivery for critical fusion systems.
With a multi-layer reinforced structure, the cable has tensile strength ≥1800N/mm² and a bending radius ≤6× the cable diameter, with exceptional wear, impact, and fatigue resistance. After 5000 hours of accelerated aging testing, it delivers a ≥25-year service life, matching fusion project cycles and reducing long-term maintenance costs.
Parameter | Standard Value |
Compliance Standard | ITER international nuclear industry standards |
Conductor Purity | ≥99.999% |
DC Resistance at 20℃ | ≤0.011 Ω/mm² |
Insulation Breakdown Voltage | ≥35 kV/mm |
Maximum Radiation Resistance | 10⁹ rad |
Long-Term Working Temperature | -196℃～+350℃ |
Minimum Design Service Life | ≥25 years |
It is widely deployed in tokamak fusion devices, global nuclear fusion experimental stations, commercial fusion power plant transmission and control systems, and fusion-related auxiliary equipment including cooling circuits, vacuum systems, and radiation detection devices, supporting stable operation of "artificial sun" projects and fusion technology R&D.
We offer fully customized Ultra-Thin Polyimide (PI) Insulated Cables solutions for project-specific technical demands. Our engineering team collaborates with your team to adjust conductor specifications, insulation structures, shielding layers, and cable dimensions to align with your device design. We support prototype sample development, with full technical documentation and test reports for every custom batch to ensure regulatory compliance.
Our entire production process strictly adheres to international nuclear industry standards and ITER requirements, with a one-time qualification rate of ≥99.8%. Every batch undergoes 12 rigorous quality inspections, including radiation resistance, temperature cycling, signal transmission, and mechanical strength testing, with full traceable test reports provided for every delivery.
We specialize in serving nuclear research institutions, commercial fusion power plant developers, tokamak engineering teams, and fusion project contractors worldwide, with tailored solutions for R&D and commercial-scale projects.
Yes, we offer custom sample development. For low-value prototypes, we provide free samples; for high-complexity custom samples, we charge a reasonable engineering fee, negotiable based on project scale.
Standard ITER-compliant products are shipped within 30 days. For custom-designed cables, the lead time is confirmed based on technical complexity and order volume, with a clear timeline provided in the quotation.
Every delivery includes full traceable quality documentation, including 12-item inspection reports, material certification, compliance certificates, and technical verification documents to meet fusion project regulatory requirements.
