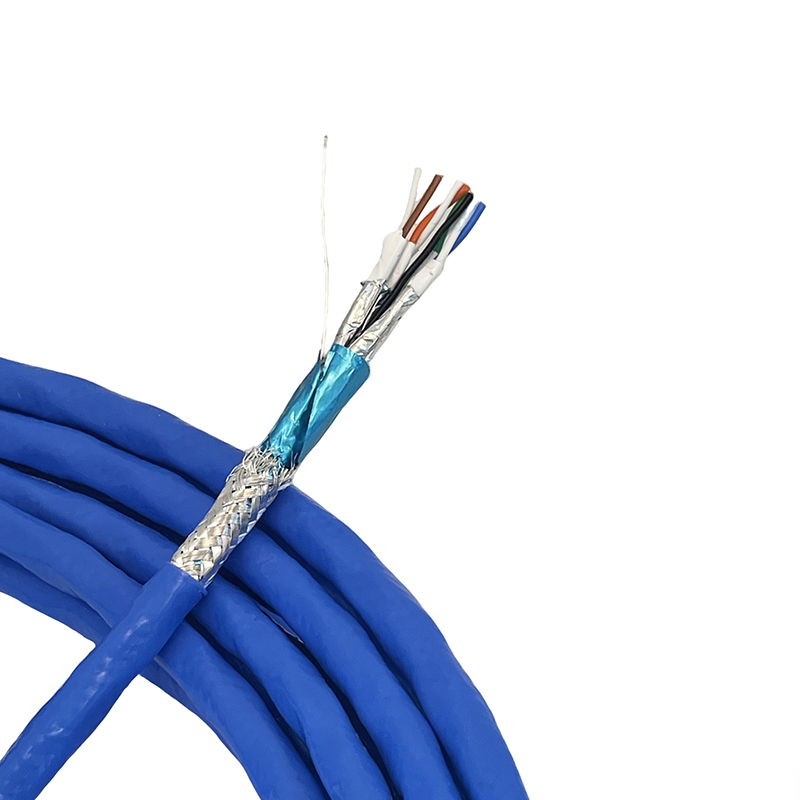

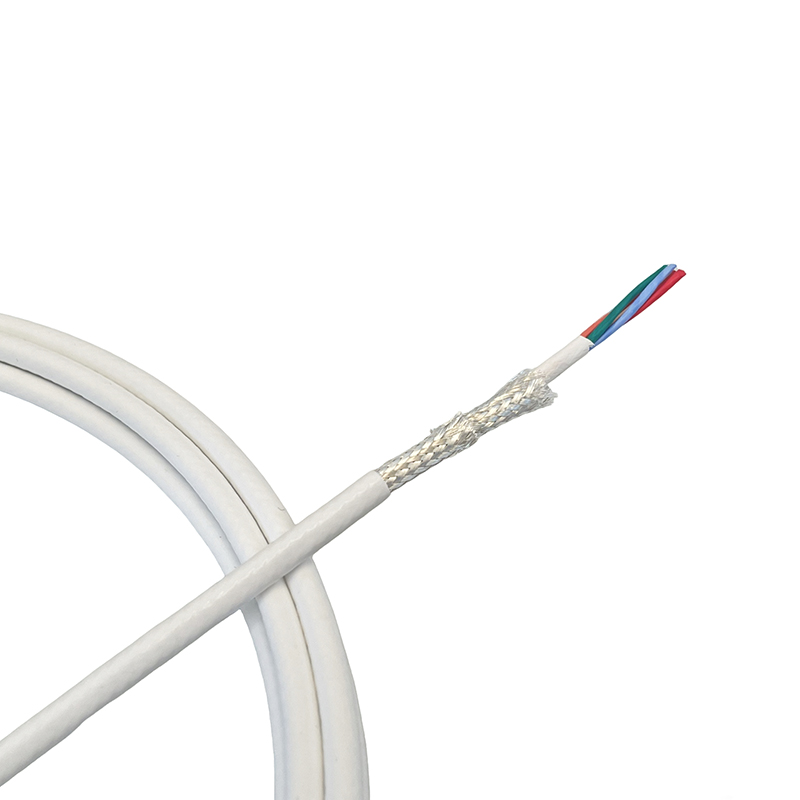

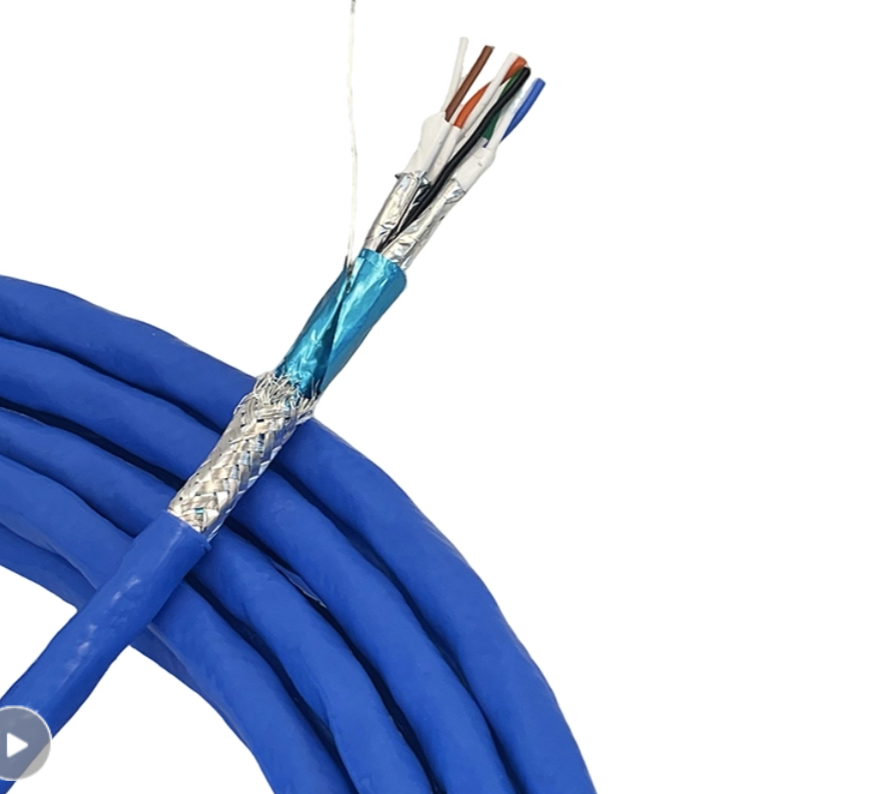

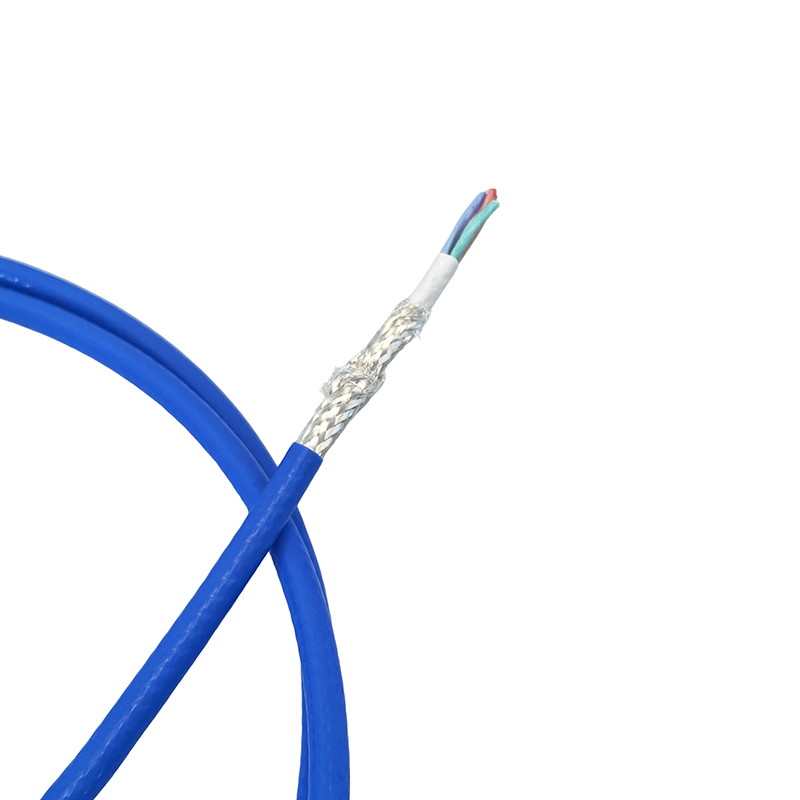

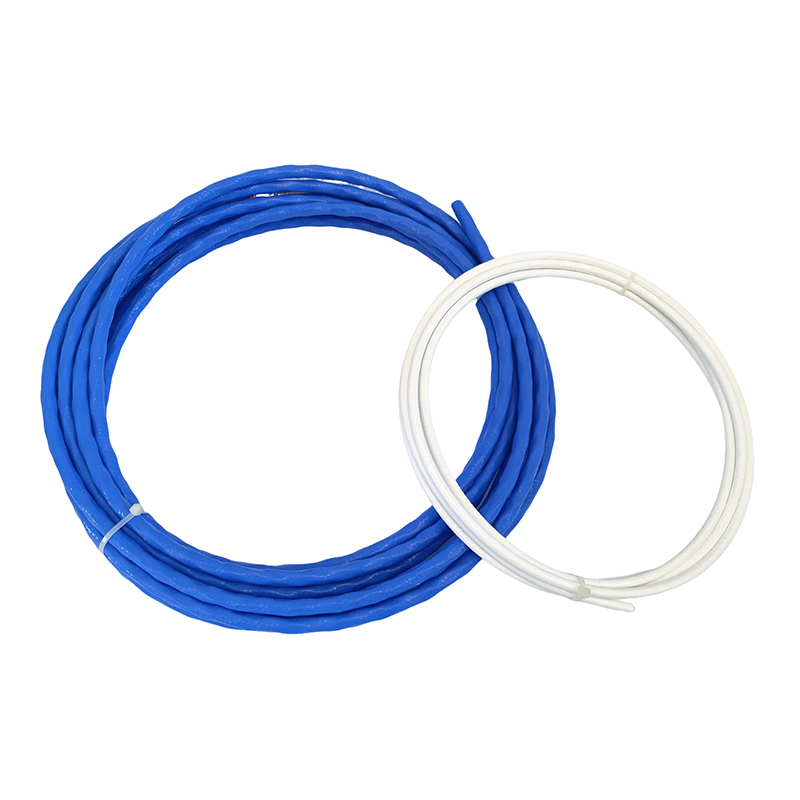

LVDS Cable | High-Speed Differential Signal Cable

LVDS Cable is a specialized signal transmission cable designed for low-voltage differential signaling technology, which enables high-speed data transmission with low power consumption and strong anti-interference capability.

Compared with traditional single-ended signal transmission, LVDS technology provides better signal integrity, lower noise, and higher data transmission efficiency.

LVDS cables are widely used in aerospace electronics, industrial control systems, LCD displays, embedded systems, imaging systems, and high-speed communication equipment.

We support custom LVDS cable manufacturing for different impedance, conductor structures, shielding configurations, and installation requirements.

Key Features

High-Speed Signal Transmission

Supports stable high-speed differential signal transmission.

Suitable for critical data communication systems.

Low Noise Transmission

Differential signaling reduces signal noise and improves transmission quality.

Excellent EMI Resistance

Optional shielding structures provide strong anti-interference capability.

Suitable for EMI-sensitive environments.

Controlled Impedance Design

Precision manufacturing ensures stable impedance consistency.

Supports customized impedance requirements.

Typical impedance options:

• 100Ω

• 120Ω

Flexible Custom Structure

Supports customized conductor size, pair count, and shielding structures.

Lightweight & Compact Design

Suitable for compact system integration and lightweight applications.

Typical Applications

• Aerospace Avionics Systems

• Industrial Control Systems

• LCD Display Systems

• Embedded Systems

• Medical Imaging Equipment

• Sensor Systems

• Communication Equipment

• Defense Electronic Systems

• Data Acquisition Systems

• High-Speed Signal Systems

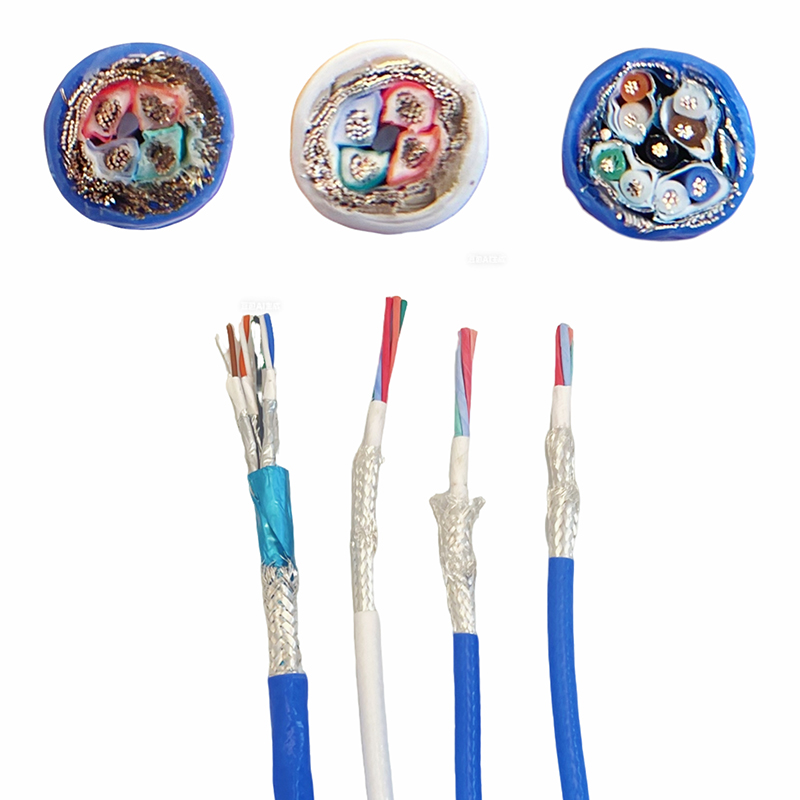

Cable Structure

Conductor

Available conductor options:

• Tinned Copper

• Silver-Plated Copper

• Bare Copper

Benefits:

• Stable conductivity

• Signal integrity

• Long service life

Insulation

Available insulation materials:

• FEP

• PTFE

• PE

• XLPE

Features:

• Stable dielectric performance

• High signal transmission stability

• Temperature resistance

Pair Structure

Available configurations:

• Single Pair

• Multi Pair

• Twisted Pair

Optimized for differential signal transmission.

Shielding (Optional)

Available shielding structures:

Unshielded Type

Suitable for standard low-interference environments.

Advantages:

• Lightweight

• Flexible

• Lower cost

Shielded Type

Available shielding options:

• Aluminum Foil Shield

• Braided Shield

• Double Shielding (Foil + Braid)

Advantages:

• EMI suppression

• Improved signal stability

• Better anti-interference performance

Suitable for critical signal systems.

Outer Jacket

Available outer jacket materials:

• FEP

• PTFE

• TPU

• PVC

• LSZH

Features:

• Flexibility

• Environmental resistance

• Abrasion resistance

Technical Specifications

Performance Advantages

High Signal Integrity

Ensures stable high-speed data transmission.

Low Power Consumption

Supports efficient LVDS communication systems.

Strong EMI Protection

Optional shielding improves anti-interference capability.

Custom Engineering Support

Supports customized cable structures for different applications.

Custom Manufacturing Capabilities

We support customized LVDS cable manufacturing based on:

• Impedance requirements

• Pair count

• Shielding structure

• Conductor type

• Outer diameter

• Temperature requirements

• Flexibility requirements

• Connector assembly

• Custom printing

Why Choose Us

Signal Cable Manufacturing Expertise

Professional experience in high-speed signal cable production.

OEM & ODM Support

Customized production according to customer requirements.

Precision Manufacturing Capability

Stable impedance control and high-quality production.

Strict Quality Control

Every cable is tested before shipment.

Fast Sample Development

Quick prototype support for system integration testing.

FAQ

What is LVDS cable used for?

It is used for high-speed differential signal transmission in electronic and industrial systems.

Is shielding available?

Yes, both shielded and unshielded versions are available.

What impedance options are available?

100Ω, 120Ω, or customized impedance.

Can cable structure be customized?

Yes, conductor, pair count, shielding, and jacket materials can be customized.

Can you manufacture according to drawings?

Yes, full OEM and ODM manufacturing is supported.
